MF Series Interactive Floor Display
Interactive LED Floor Display
Key Features
- Ultra thin and Lightweight
- Smart Interaction
- Easy Installation
- High Load-bearing Capacity
- Full Viewing Angle

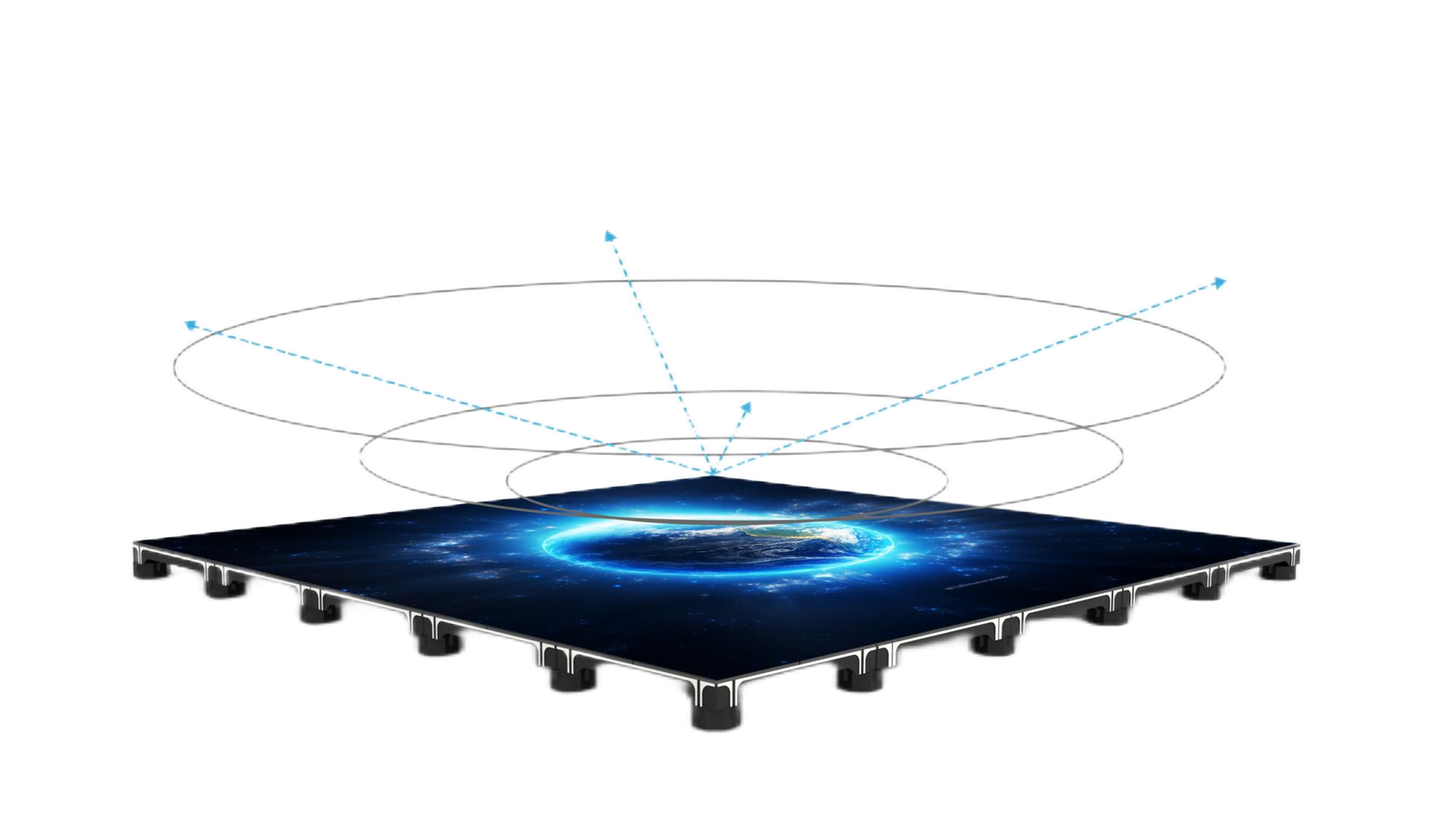

- High Flatness

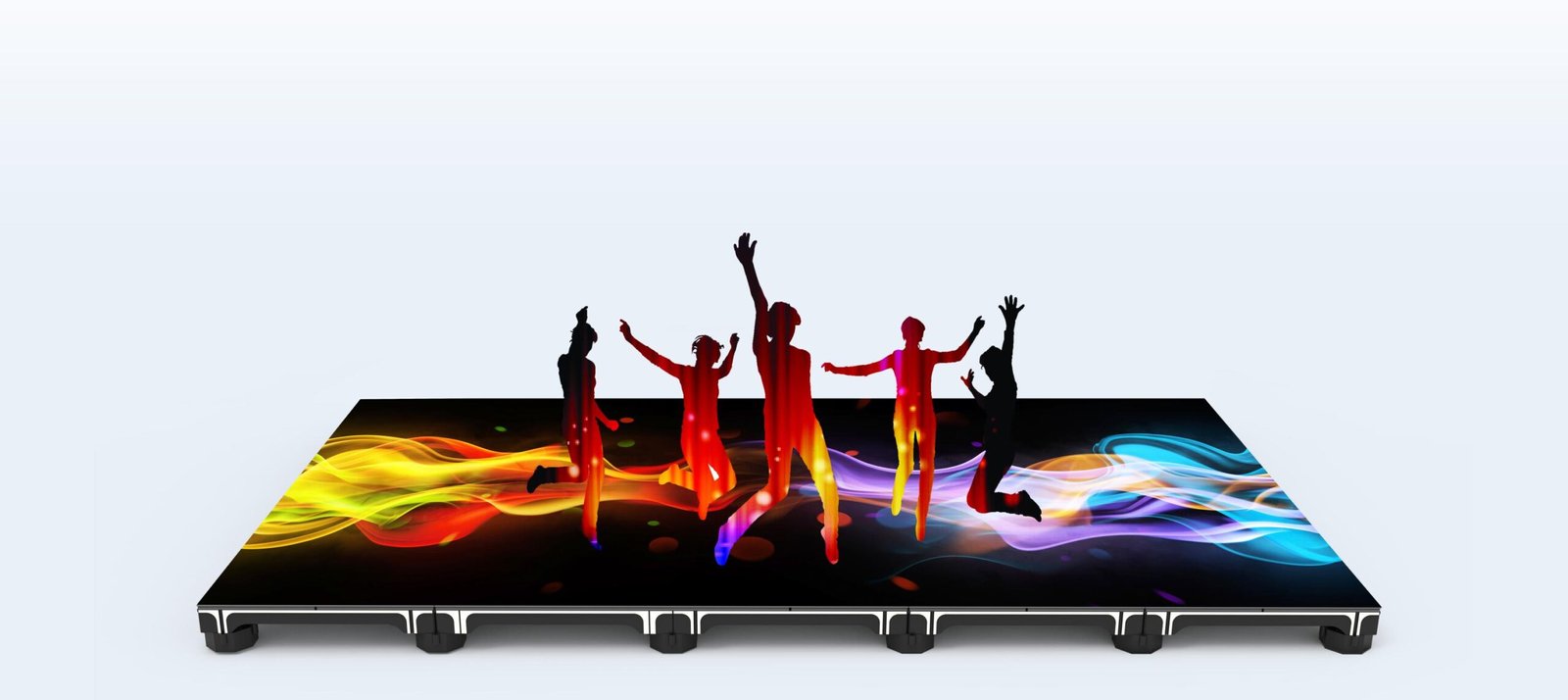

MF Series Interactive Floor Display
The Interactive Floor Display transforms ordinary floors into dynamic, high-definition digital canvases. Engineered for high traffic environments like shopping malls, showrooms, exhibits, and hospitality venues, it combines professional grade durability with advanced interactive technology, offering a 360∘ visual experience that engages every audience member.

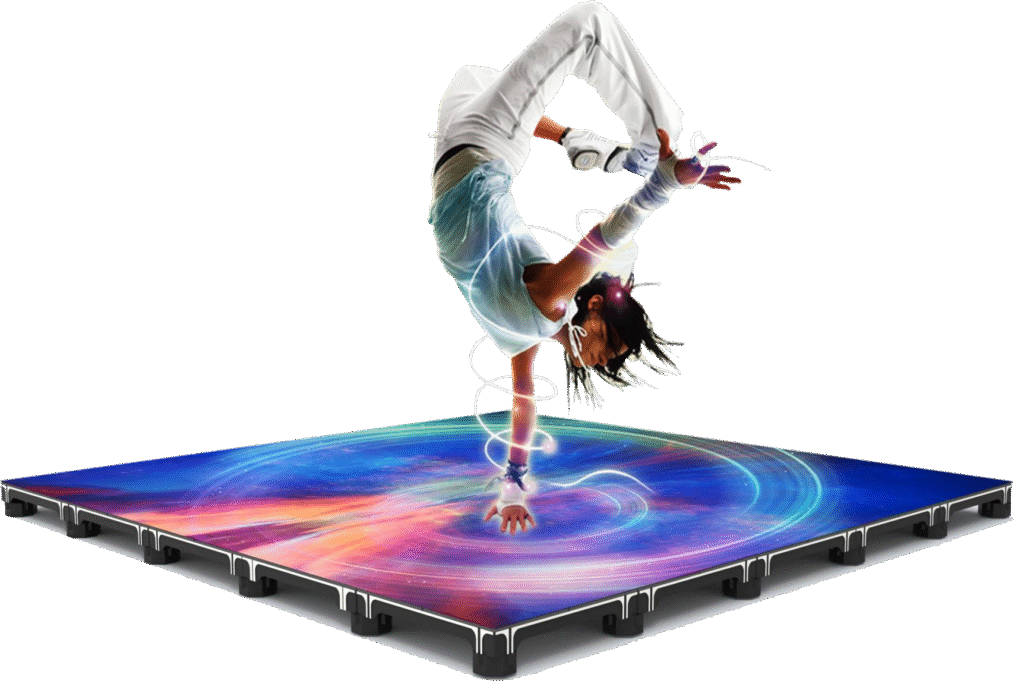

Deploy with Confidence in High Traffic Areas
With its exceptional load bearing strength and GOB protected surface, this display is built for the rigors of public life.
- GOB Protection
Smart, Responsive Interaction
With an integrated interactive system offering up to 256 sensing points per square meter, the display provides a precise and seamless touch experience. Its sensitive response allows for fluid and engaging user interactions, perfect for games, dynamic wayfinding, and reactive advertising content.
- Integrated Interactive System

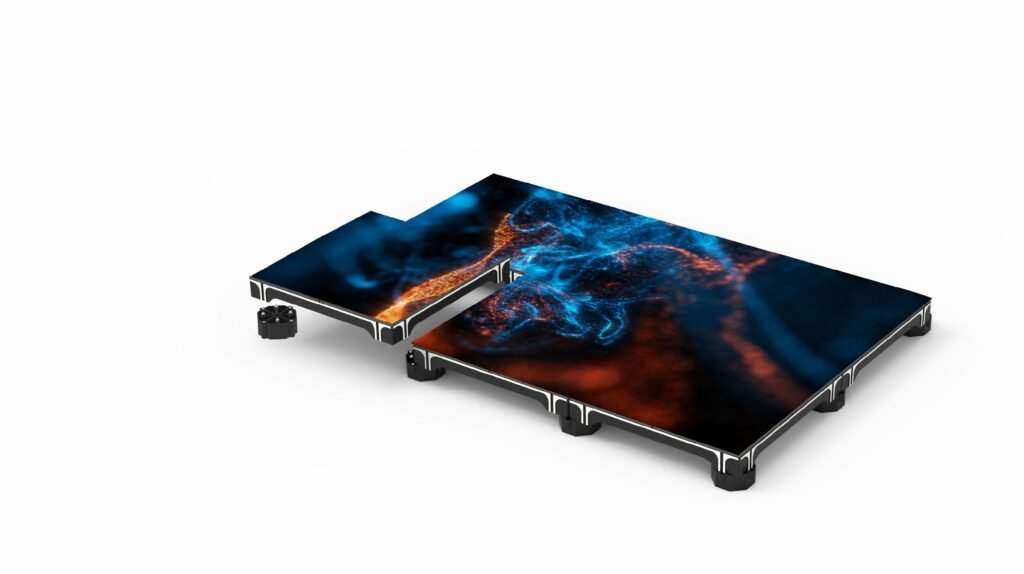

Stunning and Seamless Visuals
The high precision die cast aluminum cabinets ensure seamless assembly for a perfectly flat, uniform surface. Combined with a high refresh rate and full viewing angle, the display delivers a flawless visual experience from any perspective, free from distortion or gaps.
- Cast Aluminum Cabinets
End to End Project Support
From initial planning to long-term maintenance, our teams ensure your display solution is a success. We provide complete project assurance, beginning with Seamless Installation and backed by dedicated Technical Support throughout the operational lifecycle. This commitment extends through robust After-sales Service for maximum longevity, coupled with specialized Content & ROI Guidance to help maximize your investment’s visibility and success.
- After sales Service
- Seamless Installation
- Technical Support
- Content & ROI Guidance

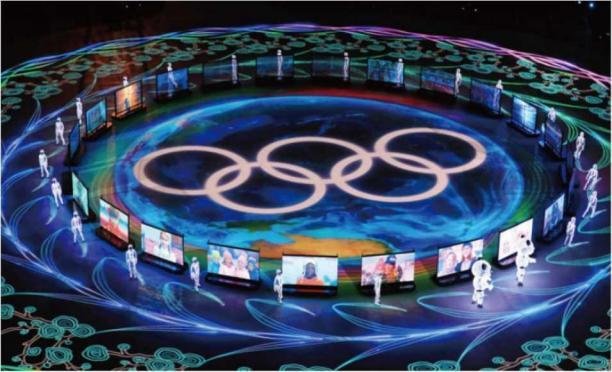

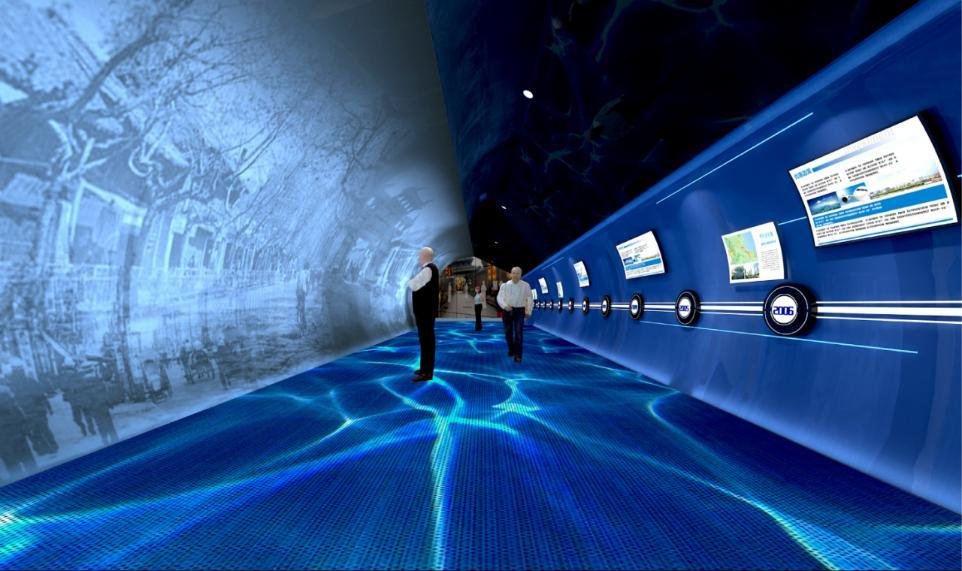

Premium Application Scenarios: Where the Interactive LED Floor Excels
Technical Specifications
Interactive LED Floor Display: Compare Pitch, Density, and Load Capacity
| Parameter | P2.5 | P2.604 | P2.976 | P3.91 |
|---|---|---|---|---|
| LED Type | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Pixel Density (dots/m²) | 160,000 | 147,456 | 112,896 | 65,536 |
| Module Resolution (W×H) | 100×100 | 96×96 | 84×84 | 64×64 |
| Module Size (W×H) | 250×250mm | 250×250mm | 250×250mm | 250×250mm |
| Cabinet Size (W×H×D) | 500×500×92mm | 500×500×92mm | 500×500×92mm | 500×500×92mm |
| Cabinet Resolution (W×H) | 200×200 | 192×192 | 168×168 | 128×128 |
| Cabinet Module Composition (W×H) | 2×2 | 2×2 | 2×2 | 2×2 |
| Cabinet Weight (kg) | 10.8 | 10.8 | 10.8 | 10.8 |
| Maintenance Mode | Front Service | Front Service | Front Service | Front Service |
| Cabinet Material | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum |
| Brightness (Nits) | ≥800 | ≥800 | ≥800 | ≥1000 |
| Color Temperature (K) | 5000 to 12000K (Adjustable) | 5000 to 12000K (Adjustable) | 5000 to 12000K (Adjustable) | 5000 to 12000K (Adjustable) |
| Viewing Angle (H/V) | 160∘/160∘ | 160∘/160∘ | 160∘/160∘ | 160∘/160∘ |
| Contrast Ratio | 10000:1 | 10000:1 | 10000:1 | 10000:1 |
| Frame Rate | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Driving Method | Constant Current, 1/20 Scan | Constant Current, 1/16 Scan | Constant Current, 1/14 Scan | Constant Current, 1/16 Scan |
| Gray Scale | 16bit | 16bit | 16bit | 16bit |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 | 3840 |
| Max Power Consumption (W/m²) | 800 | 800 | 800 | 800 |
| Avg Power Consumption (W/m²) | 200 to 300 | 200 to 300 | 200 to 300 | 200 to 300 |
| IP Rating | IP31 | IP31 | IP31 | IP31 |
| Power Supply Requirement | AC90 to 264V, 47 to 63Hz | AC90 to 264V, 47 to 63Hz | AC90 to 264V, 47 to 63Hz | AC90 to 264V, 47 to 63Hz |
| Operating Temp/Humidity | −20 to 60∘C / 10% to 85% | −20 to 60∘C / 10% to 85% | −20 to 60∘C / 10% to 85% | −20 to 60∘C / 10% to 85% |
| Storage Temp/Humidity | −20 to 60∘C / 10% to 85% | −20 to 60∘C / 10% to 85% | −20 to 60∘C / 10% to 85% | −20 to 60∘C / 10% to 85% |
| Applicable Standards | CCC/CE/RoHS/FCC/CB/TUV/IEC | CCC/CE/RoHS/FCC/CB/TUV/IEC | CCC/CE/RoHS/FCC/CB/TUV/IEC | CCC/CE/RoHS/FCC/CB/TUV/IEC |
