Custom pricing based on specifications and quantity
H Series Rental Display
H Series Rental Display
Key Features
- High Refresh Rate (3840 Hz)
- HDR Display & 16-bit Grayscale
- High Contrast Ratio (3000:1)
- Patented Arc Lock System
- Die-Cast Aluminum Cabinet
- Front and Rear Serviceability

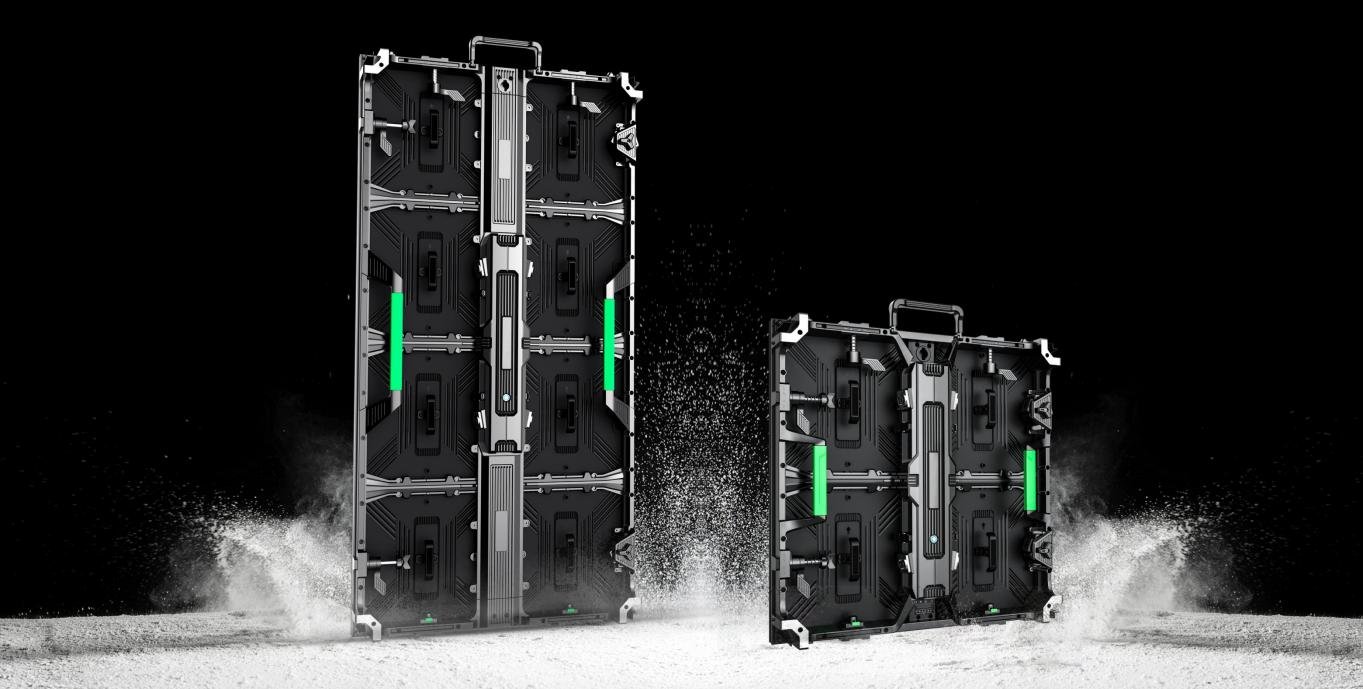

H Series Rental Display
The H Series Rental Display is engineered to be the ultimate solution for demanding live events and flexible stage design. It combines premium, broadcast ready visual performance with rugged, die cast aluminum construction and efficiency driven maintenance features. Supporting HDR display and featuring a high refresh rate of over 3840Hz, the H Series guarantees stunning, realistic, and colorful images that capture the audience’s attention in any stage scenario. It is an ideal solution for both indoor and outdoor rentals
Unmatched Visual Performance for Live Events
Achieve superior image quality that is perfect for camera or livestream without scanlines, thanks to a refresh rate over 3840Hz. The display supports HDR (High Dynamic Range) and features a grayscale up to 16 bit, enabling the display of the most delicate details. A high contrast ratio of 3000:1 ensures rich color and deep blacks.
- HDR & 3840Hz Performance
Creative and Flexible Stage Design

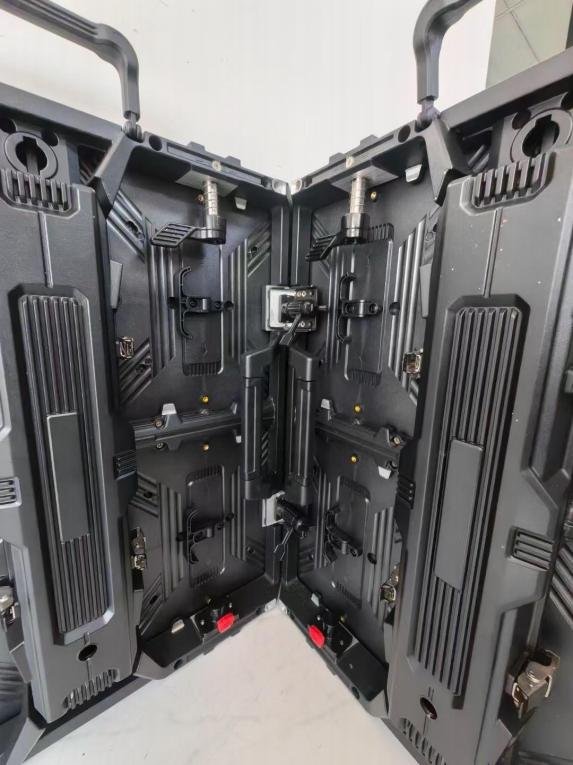

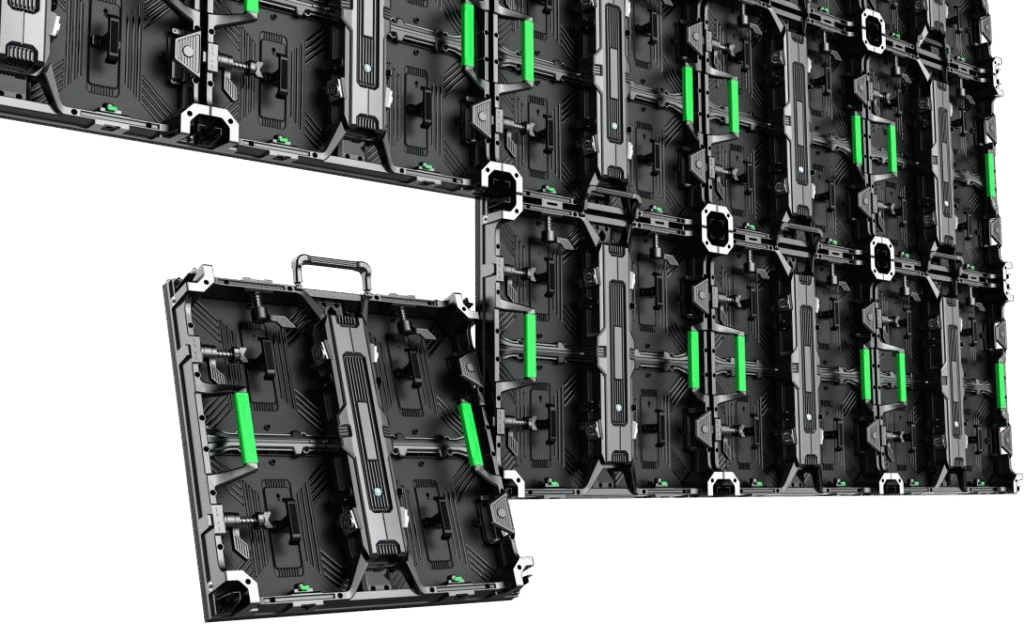

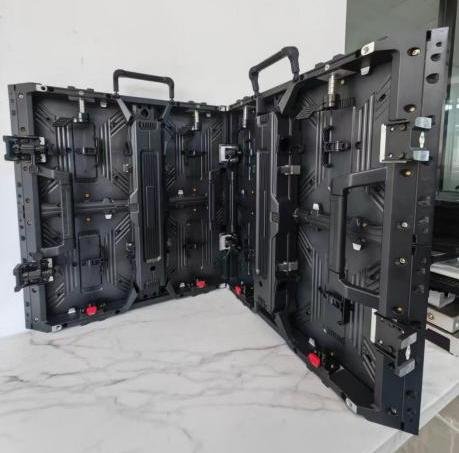

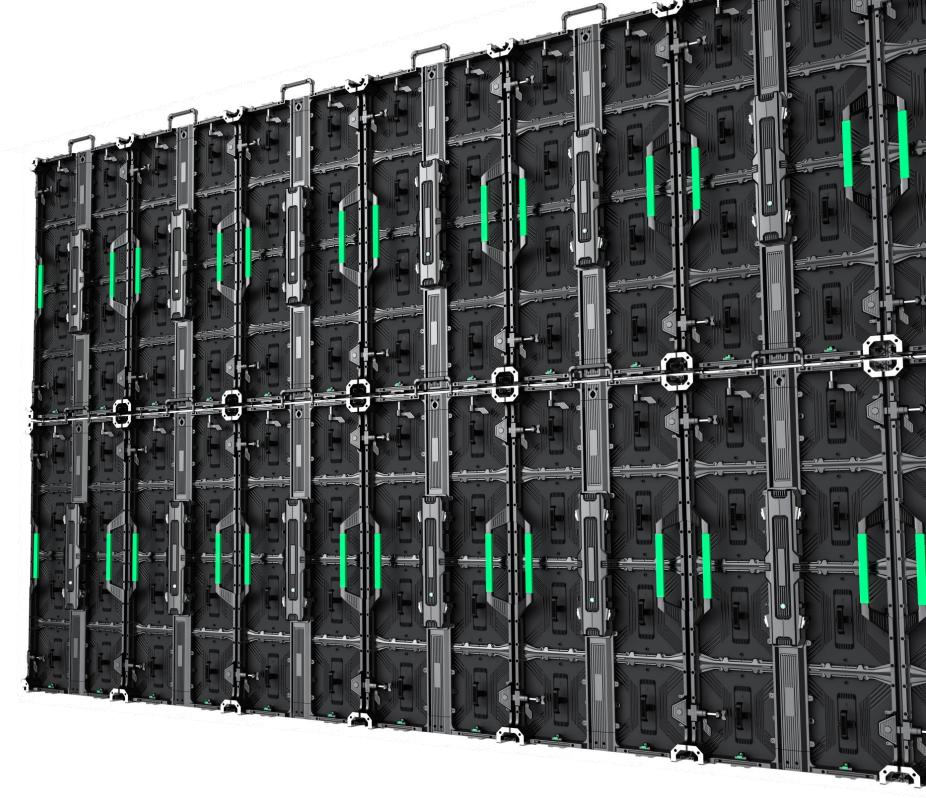

The patented arc lock system enables fast and simple splicing, supporting 5 radians of curvature for inner and outer curve connection8888. The series also supports 90 degree right angle assembly using the half box option, allowing for artistic visual effects and non-traditional stage designs.
- Patented Arc Lock & 90 degree Corner
Rental Ready Efficiency and Durability
Built from high hardness, anti tensile die cast aluminum, the box body is not easy to deform, handling the rigors of frequent transportation and installation. The modular design supports rapid front and rear maintenance on both the modules and the central control box, significantly increasing servicing efficiency and saving costs.
- Front/Rear Serviceability & Die Cast Aluminum
End to End Project Support
From initial planning to long-term maintenance, our teams ensure your display solution is a success. We provide complete project assurance, beginning with Seamless Installation and backed by dedicated Technical Support throughout the operational lifecyce. This commitment extends through robust After-sales Service for maximum longevity, coupled with specialized Content & ROI Guidance to help maximize your investment’s visibility and success.
- After sales Service
- Seamless Installation
- Technical Support
- Content & ROI Guidance

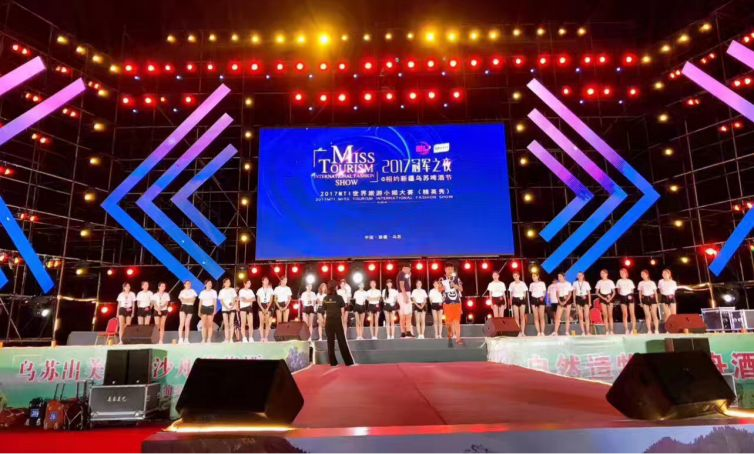

Premium Application Scenarios: H Series Rental Display
Technical Specifications
Find Your Ideal Pixel Pitch for Maximum Outdoor Impact
| Specification | HP2.9 | HP2.9 Half | HP3.9 | HP3.9 Half | HP4.8 | HP4.8 Half |
|---|---|---|---|---|---|---|
| Pixel Pitch | 2.976mm | 2.976mm Half | 3.91mm | 3.91mm Half | 4.81mm | 4.81mm Half |
| LED Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD1921 | SMD1921 |
| Max Brightness (Calibrated) | 3800~4000nits | 3800~4000nits | 3800~4000nits | 3800~4000nits | 3800~4000nits | 3800~4000nits |
| Panel Dimension (mm) | 500 × 1000 × 80 | 500 × 500 × 80 | 500 × 1000 × 80 | 500 × 500 × 80 | 500 × 1000 × 80 | 500 × 500 × 80 |
| Panel Dimension (in) | 19.7” × 39.4” × 3.1” | 19.7” × 19.7” × 3.1” | 19.7” × 39.4” × 3.1” | 19.7” × 19.7” × 3.1” | 19.7” × 39.4” × 3.1” | 19.7” × 19.7” × 3.1” |
| Panel Resolution (H × V) | 168 × 336 | 168 × 168 | 128 × 256 | 128 × 128 | 104 × 208 | 104 × 104 |
| Weight Per Panel | 9kg / 19.84lbs | 5.2kg / 11.44lbs | 9kg / 19.84lbs | 5.2kg / 11.44lbs | 9kg / 19.84lbs | 5.2kg / 11.44lbs |
| Power Consumption (Max / Avg) | 280W / 84W | 140W / 42W | 280W / 84W | 140W / 42W | 280W / 84W | 140W / 42W |
| Serviceability | Front / Rear | |||||
| Viewing Angle (Vertical) | 140° | |||||
| Viewing Angle (Horizontal) | 160° | |||||
| Refresh Rate | 3840Hz | |||||
| Gray Scale | 16bit | |||||
| Scan Ratio | 1/21 | 1/21 | 1/16 | 1/16 | 1/13 | 1/13 |
| Operational Temp / Humidity | −20°C ~ 45°C, 10% ~ 90% RH | |||||
| Storage Temp / Humidity | −40°C ~ 60°C, 10% ~ 90% RH | |||||
| IP Rating | IP65 | |||||
| Use Environment | Outdoor | |||||
| Max. Hanging | 12 panels | 24 panels | 12 panels | 24 panels | 12 panels | 24 panels |
| Max. Stacking | 6 panels | 12 panels | 6 panels | 12 panels | 6 panels | 12 panels |
| Input Voltage (Nominal) | 100V AC – 240V AC | |||||
| Input Power Frequency | 50 to 60 Hertz | |||||
Custom Project Solutions
Discuss your specialized LED project today.
Get a Custom Quote in 24 Hours
Connect with our technical LED specialists to precisely map your vision, ensuring the perfect pixel pitch, brightness, and structural fit for your project.
