Custom pricing based on specifications and quantity
MRC Series High Definition Display
C Series High Definition Rental Display
Key Features
- High Refresh Rate (3840 Hz)
- HDR Display & 16-bit Grayscale
- High Contrast Ratio (3000:1)
- Patented Arc Lock System
- Die-Cast Aluminum Cabinet
- Front and Rear Serviceability
MRC Series High Definition Display
The MetaLED C Series is a specialized high-definition display system engineered for the world of rental and staging, where creative design is paramount. As an ideal outdoor solution , the C Series’ core strength is its revolutionary patented arc lock system, which supports extreme curving. This capability allows designers to seamlessly build circular stages, dramatic waves, and custom, arc-shaped video walls. Combined with HDR display and a 3840 Hz refresh rate, the C Series creates a stunning, eye-catching stage that captures every detail for both the live audience and the camera.
Unmatched Creative Flexibility

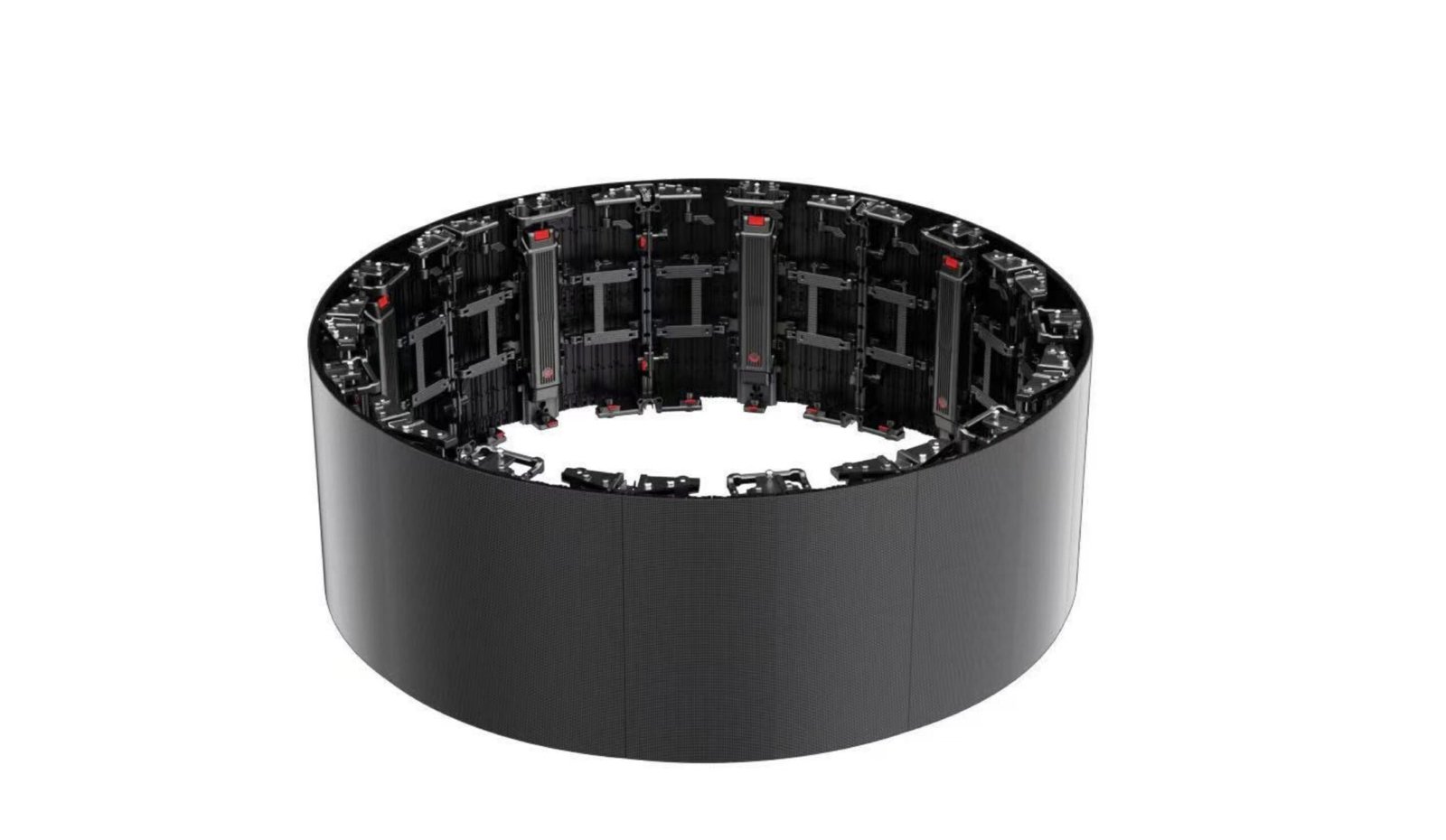

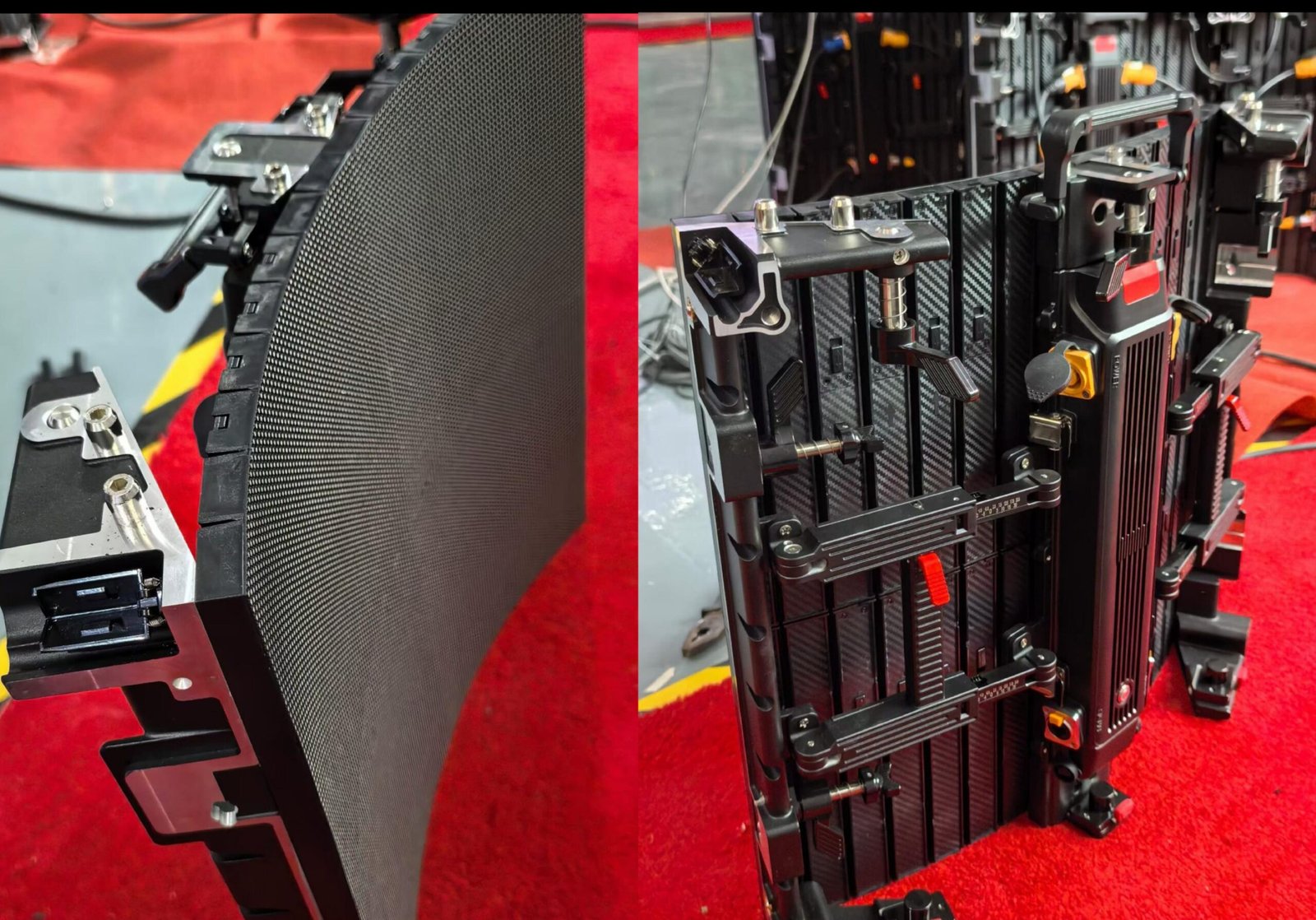

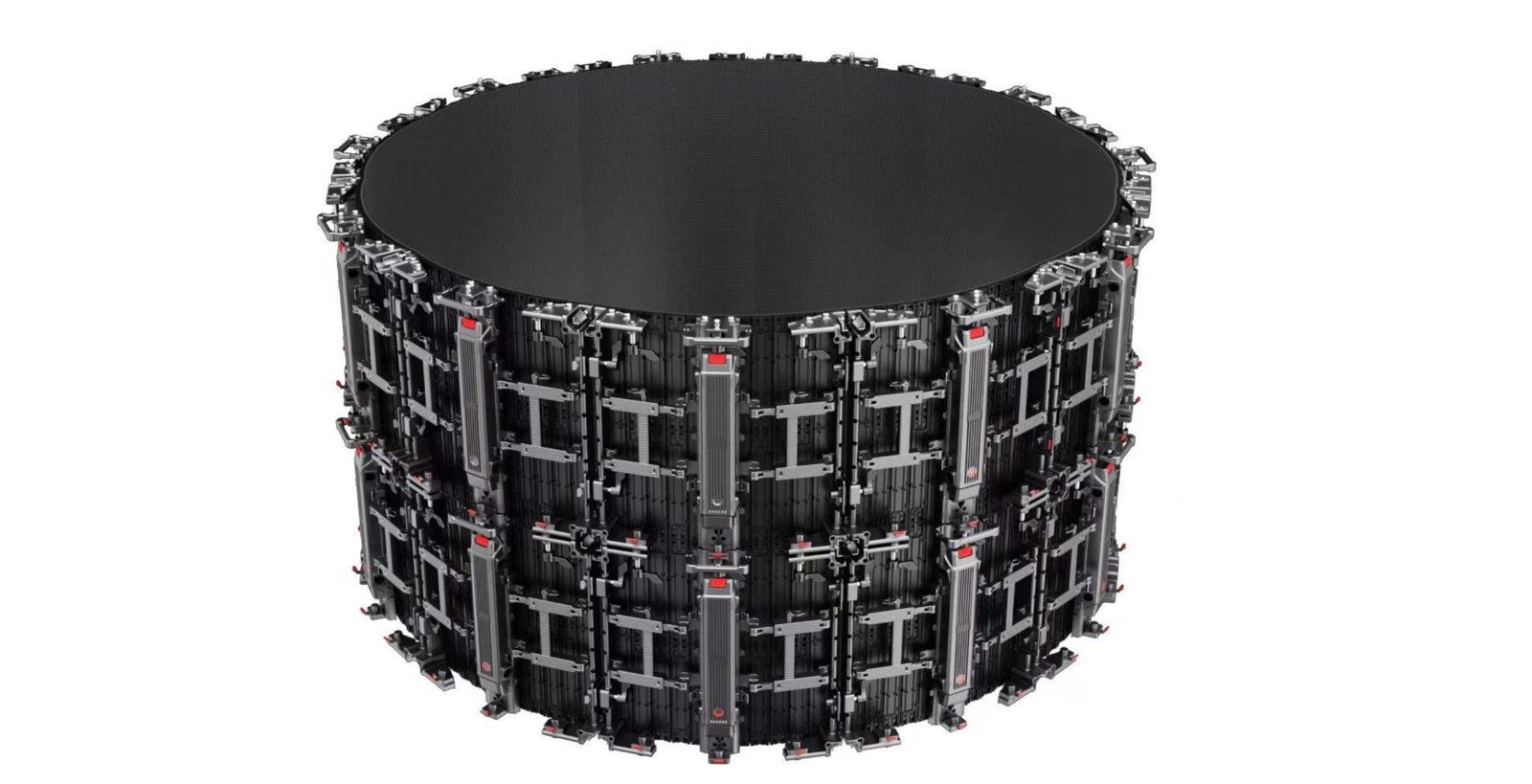

The signature feature of the C Series is its patented arc lock, which supports any angle within 25 degree radian. This means you can design a full 360 degree circular stage or a dramatic wavy backdrop with unprecedented precision, easily splicing and locking the die cast aluminum cabinets together.
- Extreme Curvature
Premium Visuals for Broadcast
Engineered for a superior display performance that creates an eye catching stage , the panel supports HDR and features a grayscale up to 16-bit for delicate details. The high contrast ratio of 3000:1 and a refresh rate of over 3840 Hz ensure rich color and flicker-free images, perfect for broadcast and livestreaming.
- HDR, 16-bit, and 3840 Hz Performance
Efficient Rental Ready Design

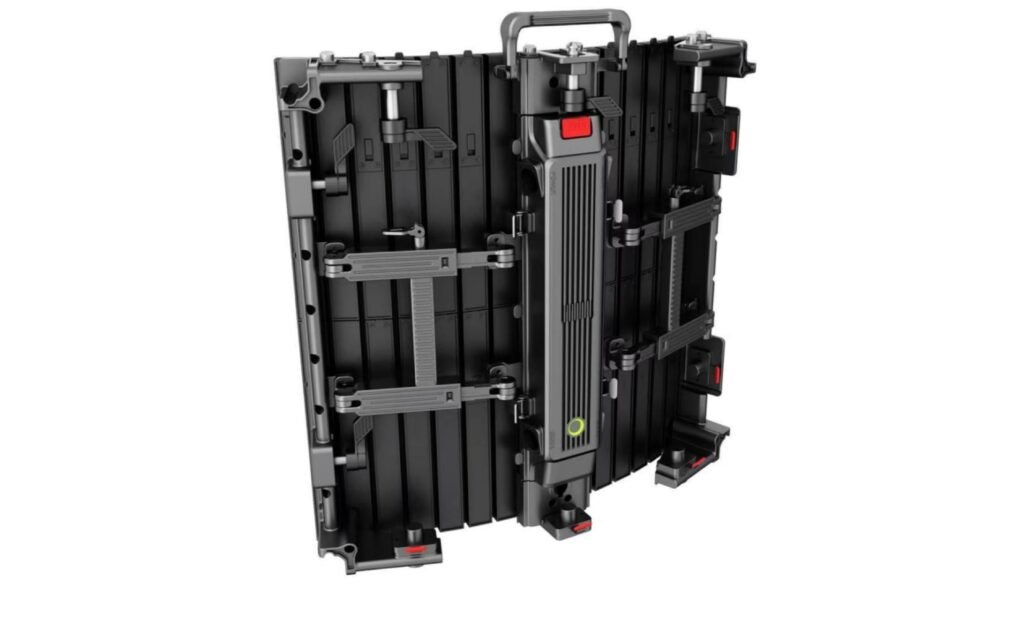

The cabinet is constructed from high hardness, anti tensile die cast aluminum, built to withstand the rigorous demands of touring and fast setups. The modular design supports both front and rear maintenance , including optional independent disassembly of the central control box, ensuring efficient servicing and minimal downtime during a busy event schedule.
- Die Cast Aluminum & Front/Rear Serviceability
End to End Project Support
From initial planning to long-term maintenance, our teams ensure your display solution is a success. We provide complete project assurance, beginning with Seamless Installation and backed by dedicated Technical Support throughout the operational lifecyce. This commitment extends through robust After-sales Service for maximum longevity, coupled with specialized Content & ROI Guidance to help maximize your investment’s visibility and success.
- After sales Service
- Seamless Installation
- Technical Support
- Content & ROI Guidance
Premium Application Scenarios: C Series Rental Display
Technical Specifications
Compare Clarity, Configuration, and Coverage
| Title | CP1.95 | CP2.6 | CP2.9 | CP3.9 |
|---|---|---|---|---|
| Pixel Pitch | 1.953mm Half | 2.604mm Half | 2.976mm Half | 3.91mm Half |
| LED Configuration | SMD1515 | SMD1515 | SMD2121 | SMD2121 |
| Max Brightness Calibrated | 600~750nits | 600~750nits | 600~750nits | 750~850nits |
| Panel Dimension | 500×500×80mm (19.7″×19.7″×3.1″) | 500×500×80mm (19.7″×19.7″×3.1″) | 500×500×80mm (19.7″×19.7″×3.1″) | 500×500×80mm (19.7″×19.7″×3.1″) |
| Panel Resolution (H×V) | 256×256 | 192×192 | 168×168 | 128×128 |
| Weight Per Panel | 5.2kg / 11.44lbs | 5.2kg / 11.44lbs | 5.2kg / 11.44lbs | 5.2kg / 11.44lbs |
| Power Consumption (Max / Avg) | 140W / 42W | 140W / 42W | 140W / 42W | 150W / 45W |
| Supports Radians | Any angle within ±22.5° | Any angle within ±22.5° | Any angle within ±22.5° | Any angle within ±22.5° |
| Serviceability | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
| Viewing Angle (Vertical) | 140° | 140° | 140° | 140° |
| Viewing Angle (Horizontal) | 160° | 160° | 160° | 160° |
| Refresh Rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Gray Scale | 16bit | 16bit | 16bit | 16bit |
| Scan Ratio | 1/32 | 1/32 | 1/28 | 1/16 |
| Operational Temp / Humidity | −20°C~45°C, 10%~90% RH −4°F~113°F, 10%~90% RH |
−20°C~45°C, 10%~90% RH −4°F~113°F, 10%~90% RH |
−20°C~45°C, 10%~90% RH −4°F~113°F, 10%~90% RH |
−20°C~45°C, 10%~90% RH −4°F~113°F, 10%~90% RH |
| Storage Temp / Humidity | −40°C~60°C, 10%~90% RH −40°F~140°F, 10%~90% RH |
−40°C~60°C, 10%~90% RH −40°F~140°F, 10%~90% RH |
−40°C~60°C, 10%~90% RH −40°F~140°F, 10%~90% RH |
−40°C~60°C, 10%~90% RH −40°F~140°F, 10%~90% RH |
| IP Rating | IP30 | IP30 | IP30 | IP30 |
| Use Environment | Indoor | Indoor | Indoor | Indoor |
| Max. Hanging | 24 panels | 24 panels | 24 panels | 24 panels |
| Max. Stacking | 12 panels | 12 panels | 12 panels | 12 panels |
| Input Voltage (Nominal) | 100V AC – 240V AC | 100V AC – 240V AC | 100V AC – 240V AC | 100V AC – 240V AC |
| Input Power Frequency | 50 – 60Hz | 50 – 60Hz | 50 – 60Hz | 50 – 60Hz |
Custom Project Solutions
Discuss your specialized LED project today.
Get a Custom Quote in 24 Hours
Connect with our technical LED specialists to precisely map your vision, ensuring the perfect pixel pitch, brightness, and structural fit for your project.
